TCG104VGLQFANN-AN31-ZA 10.4 Inch LCD Panel Replacement LVDS 800x600 TFT Display for Industrial Control Panel

The TCG104VGLQFANN-AN31-ZA is a high-brightness 10.4" TFT-LCD display module. Manufactured with industrial-grade components, this module features a rugged mechanical design and a wide operating temperature range. Key Features: - High Luminance (800 cd/m²) for direct sunlight visibility - Built-in LED Driver (12V DC backlight power required; no external inverter) - Industrial Operating Temp (-20℃ to +70℃) - LVDS Interface (Single Channel, 8-bit, 20-pin) Technical Specifications (Check Compatibility): - Panel Type:10.4" a-Si TFT-LCD, TN, Normally White - Resolution: 640 × 480 (VGA) - Pixel Arrangement: RGB Vertical Stripe - Brightness: 800 cd/m² (Typ.) - Contrast Ratio: 1000:1 (Typ.)

• BRIGHT & DAYLIGHT VIEWABLE: High brightness of 800 cd/m² (Typ.) with 1000:1 contrast ratio. Specifically designed for Industrial HMI, medical equipment, vehicle-mounted devices, outdoor equipment
• ROBUST LVDS INTERFACE: Standard 20-pin LVDS (Single channel 8-bit) interface. Note: This is NOT a TTL or VGA screen. Please verify your controller supports LVDS output before ordering.
• INDUSTRIAL WIDE TEMP: Rated for operation from -20°C to +70°C. Ideal for outdoor digital signage, automotive dashboards, factory automation HMI, and medical carts exposed to varying climates.

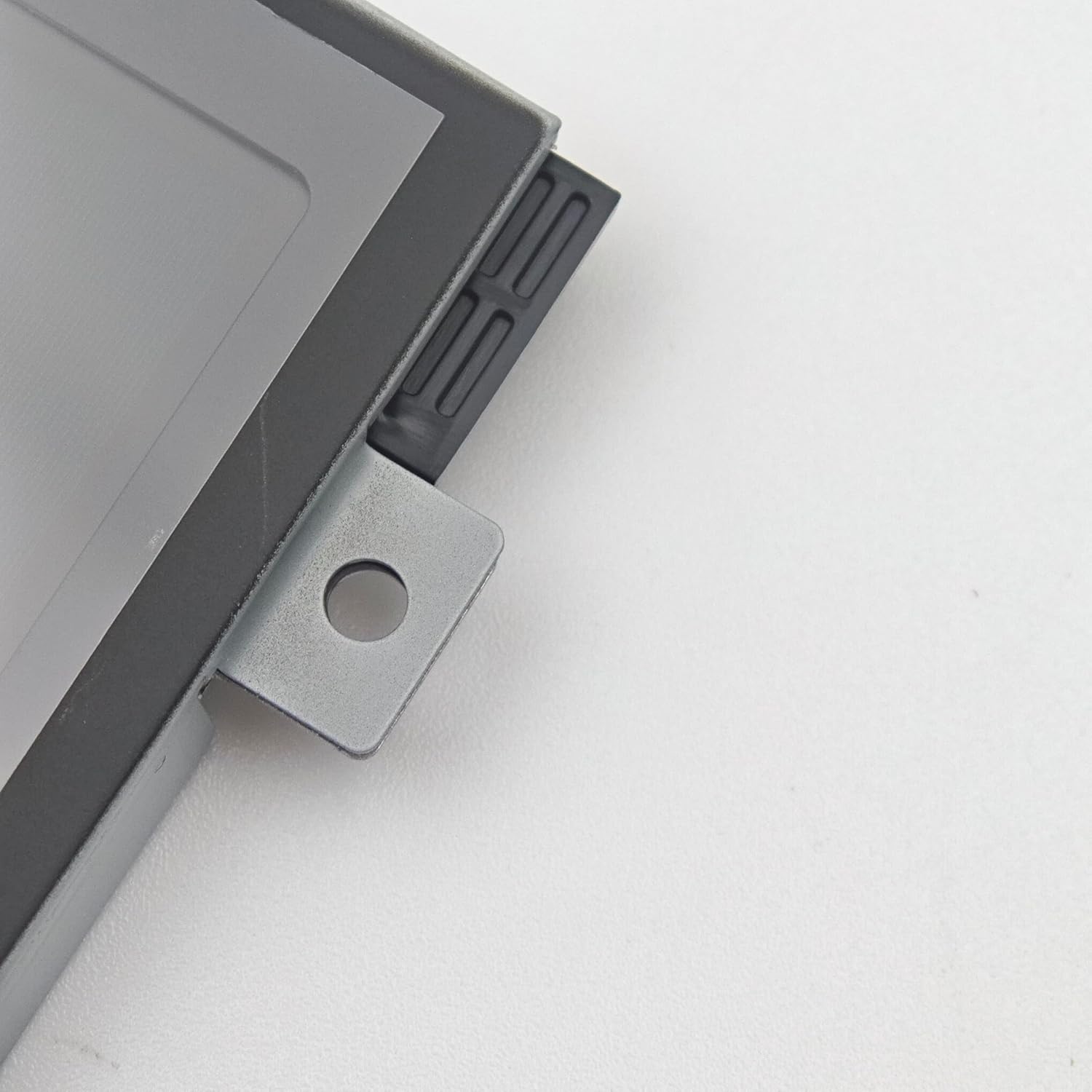

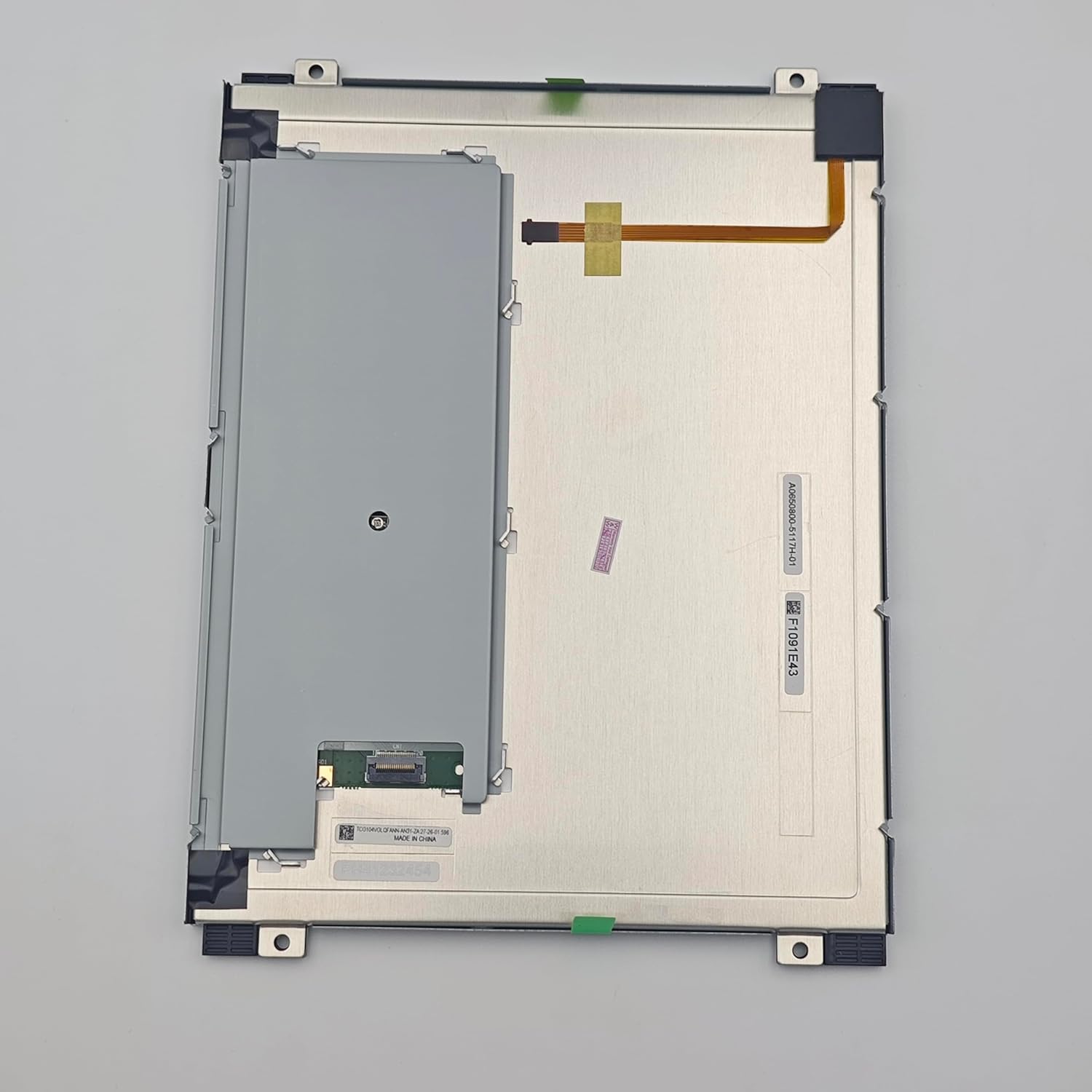

• MECHANICAL SPECS: 10.4" diagonal, 640x480 (VGA) resolution, 4:3 aspect ratio (RGB Vertical Stripe). Outline dimensions: 230(W) × 180.2(H) × 10.5(D) mm
• BUILT-IN LED DRIVER: Features an integral WLED backlight system with a built-in driver. Requires only a 12V DC power supply for the backlight
